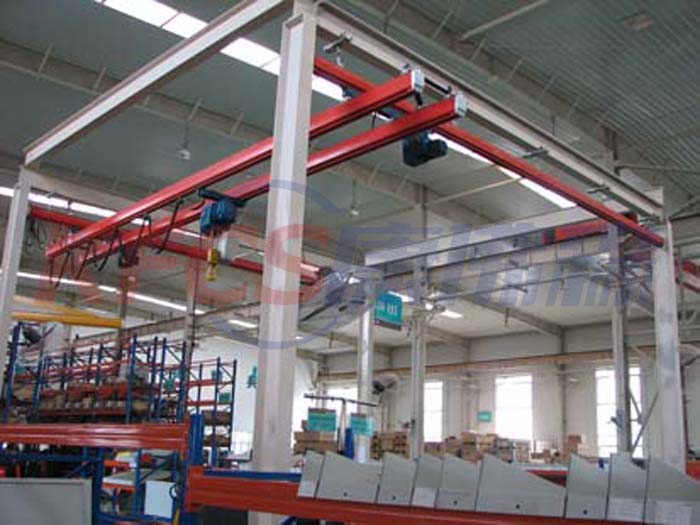

KBK Flexible Double Girder Suspension Crane
KBK Flexible Double Girder Suspension Crane
Features
1. The lifting height is higher. Since the hoist is suspended on the trolley frame between the two KBK main beams, the double beam crane can provide a higher lifting space than the single beam crane.
2. The span is larger, the KBK flexible double-girder suspension crane can be suspended on multiple tracks, thus realizing the maximum span to cover a larger storage and production area, the crane can be easily moved by hand, but when the span of the crane track is When the crane is larger than 6m and the crane load exceeds 500kg, we recommend using the electric friction wheel to drive the walking plan.
3. The maximum lifting capacity of KBK flexible double-girder suspension crane can reach: 2000kg;
4. The maximum span of KBK flexible double-girder suspension crane can reach: 7 meters. The lifting weight is 125kg-2000kg.
5. Good reliability and high stability
The components of the crane system are all standard modules, which can ensure large-scale and high-quality production, so the system is very reliable; the main body of the system module is three specifications of cold-rolled profiles, which have high strength, good rigidity and light weight, which ensures the system's stability. stability.
6. Strong adaptability
It can be flexibly designed and installed according to the needs of each station in the factory. From fixed-point transportation to high-accuracy multi-point and multi-beat automatic conveyor lines, they can be combined at will. It can be used for newly designed workshops, and can also be used for system transformation and extension.
7. Easy to install, cost-effective
Installation and debugging is very convenient. The profiles and standard modules can be used only by bolting, which can save the space and area of the factory, thereby reducing energy consumption and improving enterprise efficiency. The system can be operated manually, or automatically or semi-automatically, with high efficiency.
