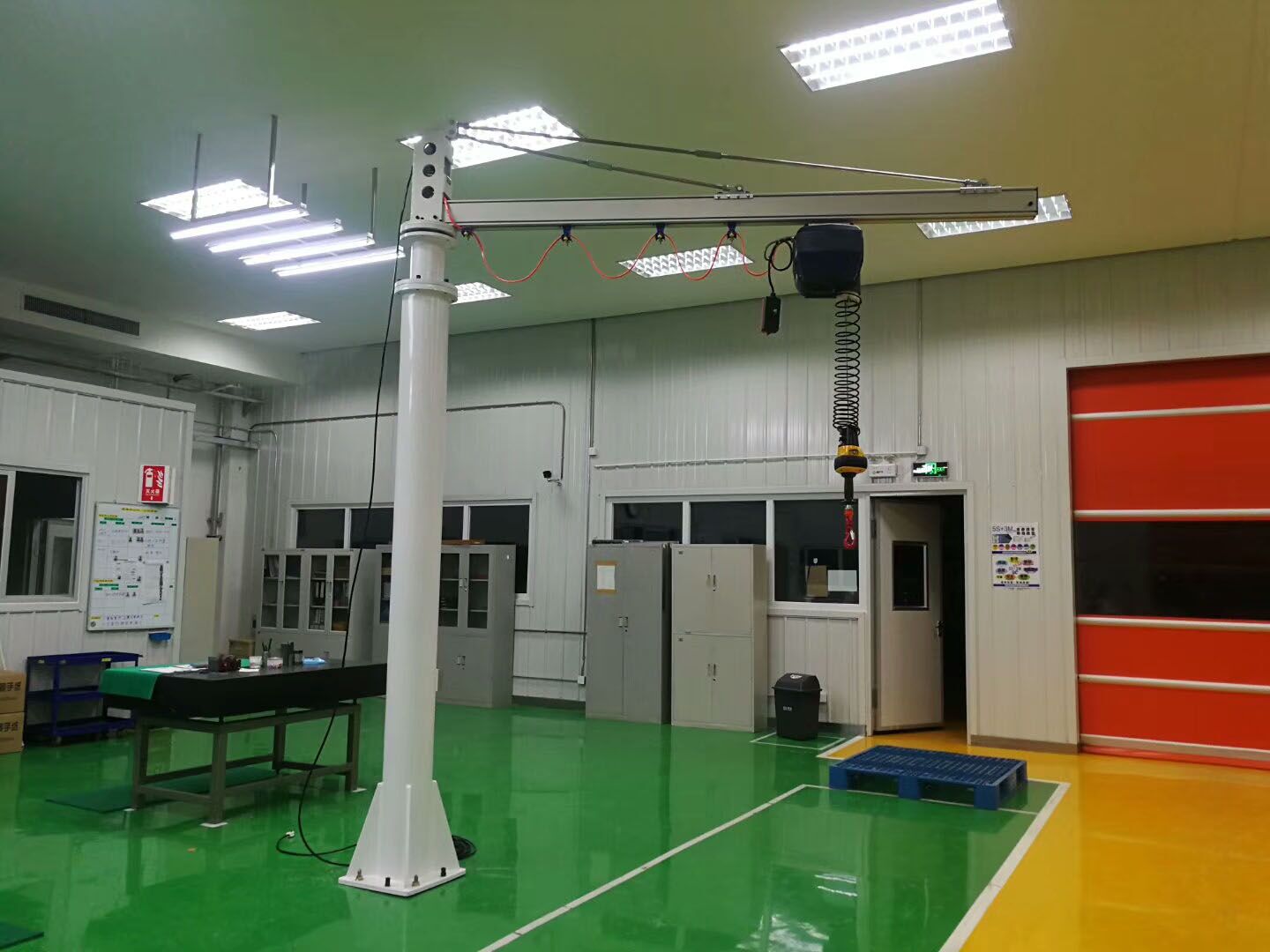

Floor Standing Hand Operated Jib Crane
Floor standing hand operated jib crane is an efficient material handling equipment widely used in factories, warehouses and other places. It realizes fast and accurate handling and positioning of heavy objects through the flexible movement of the rotating arm and the lifting function of the lifting mechanism.
Type introduction
Floor standing hand operated jib cranes are mainly divided into two types: manual drive and electric drive according to different driving methods. Manually driven cranes rely on manpower to turn the handle, and drive the jib rotation and lifting mechanism through the transmission mechanism. They are suitable for situations with smaller tonnage and lower frequency of use. Electrically driven cranes are driven by electric hoists and have higher working efficiency and larger tonnage. They are suitable for high-intensity operations such as large factories and warehouses.
Product usage
Floor standing hand operated jib crane is suitable for various places that require frequent handling and positioning of heavy objects, such as factory production lines, warehouse shelves, etc. It can easily lift and rotate heavy objects from one location to another for fast and accurate material handling. At the same time, the floor standing hand operated jib crane also has the advantages of easy operation and maintenance, which greatly reduces labor and maintenance costs.
Design features
● The floor-standing design eliminates the need for the crane to be fixedly mounted on a wall or ceiling and can be moved and operated freely, providing greater flexibility and convenience.
● The manual hoist is simple to operate. It can lift, lower and move goods through manual operation without requiring additional power or air source.
● It is suitable for various industrial environments and can be used for operations such as handling light goods, loading and unloading parts, etc.
● The cost is low and suitable for places where lifting requirements are not very high.
● Floor-standing manual jib cranes with different sizes, load-bearing capacities and functions can be customized according to actual needs to meet the lifting needs of different occasions.
Installation method
● According to the tonnage and usage requirements of the crane, a suitable concrete foundation is selected and constructed. The foundation should be flat, solid, and able to withstand the weight of the crane and the dynamic loads generated during work.
● Install the columns on the concrete foundation, ensuring that the verticality and parallelism of the columns meet the requirements. After the columns are installed, they should be fixed and reinforced to prevent the crane from shaking or overturning during use.
● Install the jib and lifting mechanism to ensure that the components are firmly connected and the transmission is smooth. At the same time, check whether the wire ropes, pulleys and other components of the lifting mechanism are intact to ensure the normal operation of the crane.
● Install drive units, including manual drives and electric drives. The manual drive device should be installed in a position that is convenient for operation. The electric drive device should be connected to the power supply and tested for operation to ensure the normal operation of the drive device.
